Paper cake holder machineLocation: Home > Paper cake holder machine

Product model:  FBJ-A
Product name:  Fully automatic intelligent cake paper cup molding machine
 Detail


Fully automatic intelligent cake paper cup molding machine

Machine introduction:

1. The rated speed of the Equipment is 50 times/ min, the current fastest speed of this type machine is 60 times/ min, it has material monitoring, feeding monitoring, forming monitoring collection monitoring and other automatic systems, if machine appears running fault, systems will stop the machine with the alarm.

2. Belongs to automatic paper products molding equipment, speed fast, easy to operate and so on. This model uses hot air generating device system, suitable for single PE coated paper. Fast Speed, energy saving, stability, simple operation, microcomputer testing, the domestic advanced technology products.

3. Automatic feeding, heating(with hot air generating device) hot molding (four corners of adhesive lunch box), automatic point and collection, microcomputer control and other continuous processes, for the production of single-piece disposable paper lunch boxes, paper lunch boxes, cake cups, food package boxes and so on.


 Specification:

Type

FBJ-A

Production capacity

55-60次/分钟times/min (实际产量以产品大小为准)

Maximum size:

190 x135mm

Max Paper Convey Width:

240mm

Suitable Material:

150-300 g/m2 (PE Coated paper)

Total Power:

1.5KW

Voltage requirement

220V/50HZ

Total Weight:

0.5T

Overall Dimension:

1100(L)x1100(W)x1650(H)mm

Working Air Source:

Air pressure 0.4-0.5Mpa (Need to buy air compressor)

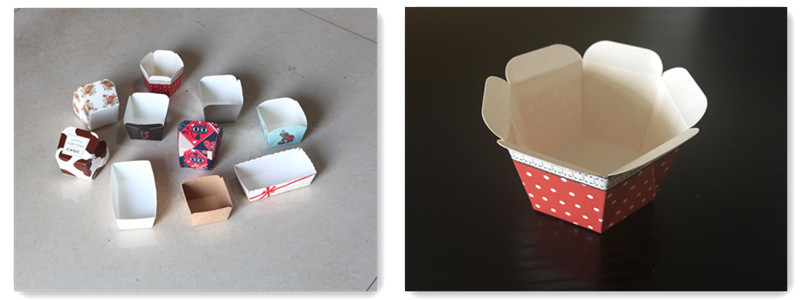

Sample display:
